Motorized assistance in the food processing sector

Visuel domaine food processing

Handling optimization in harsh environments

Adding an electrical motorization on manual handling equipment allows improving inter-units logistics while preserving the health of operators. Motorize any rolling equipment in food processing industry such as pusher/pullers of DIN9797 tanks, stainless steel tanks or drum trolleys with ez-Wheel® electric wheels.

Our product offer is made for responding the food processing sector's requirements:

Performance

  • inter-units distance optimization
  • flexible handling between different processing units
  • stock-outs and production stops decrease


Operators

  • peak pushing effort reduction
  • professional risk, especially MSD (Musculoskeletal disorders) reduction
  • easy, safe and intuitive use of the handling equipment

Our solutions for the food processing sector

Waterproof and monobloc products for humid environments.

[+] Easy wireless integration on any kind of rolling materials

The Series 300 wheel controlled by the tiller head offers a wireless solution without connector, perfect for demanding and wet environments.

[+] Precise manoeuvre and smooth ride

The accurate motorization control allows precise positioning of machines.

[+] High pressure jet cleaning

The high protection index and the stainless-steel cover of the Series 300 wheel allow high pressure jet cleaning, the robustness of the assembly being reinforced by the absence of connectors and fragile units.

[+] Production machinery motorization

Even the most complex production machineries can be motorized by ez-Wheel® electric wheels, thanks to its small dimensions and its standard form factor.

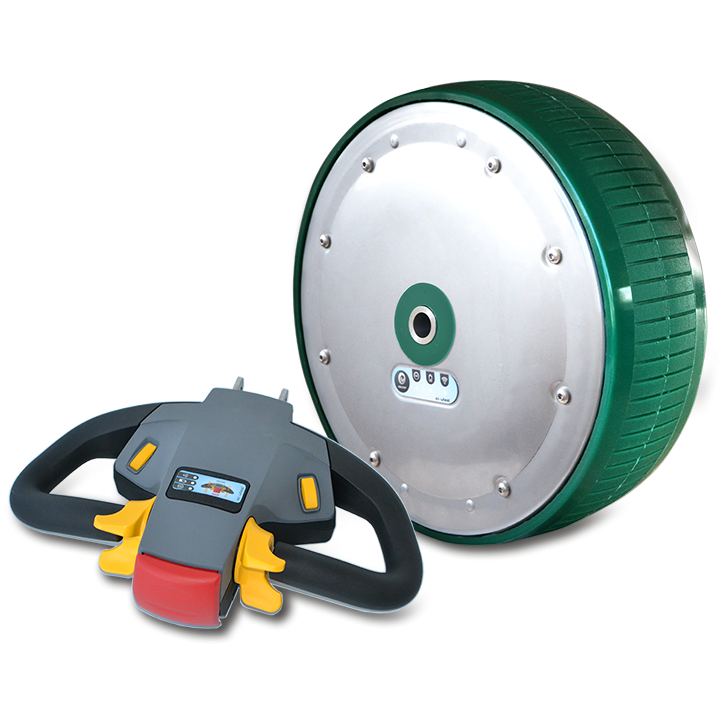

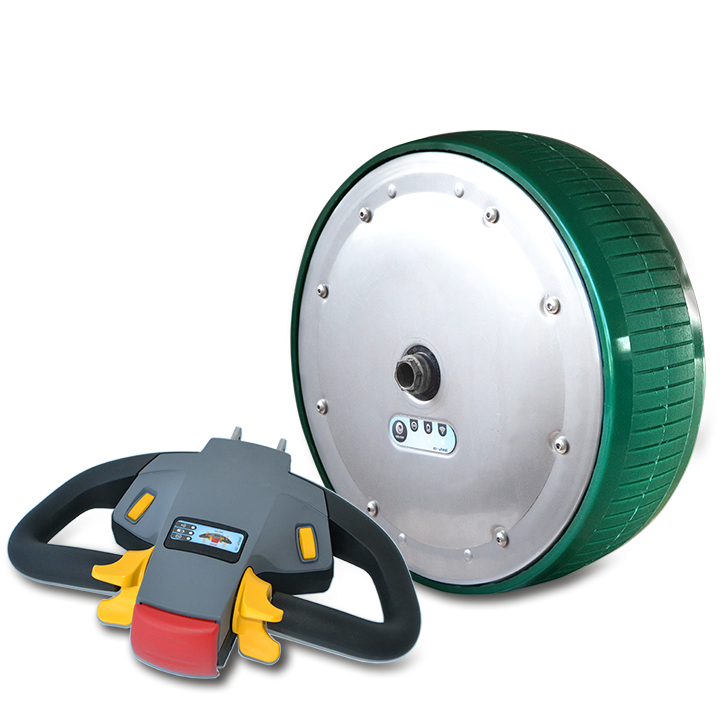

ez Wheel Serie 300 tiller head

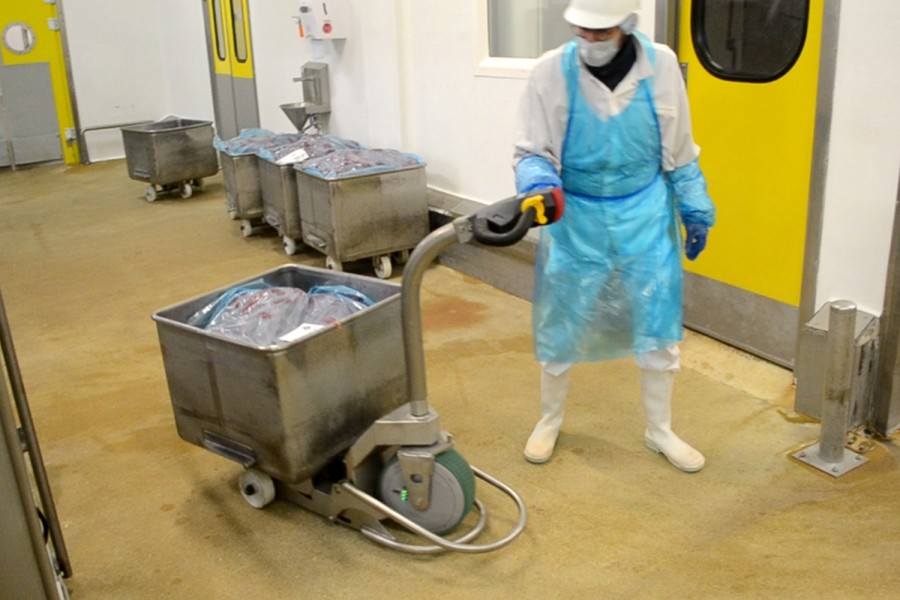

realisation serie 300Fpusher puller

Pusher/puller for food processing industry motorized by an ez-Wheel® electric wheel Series 300

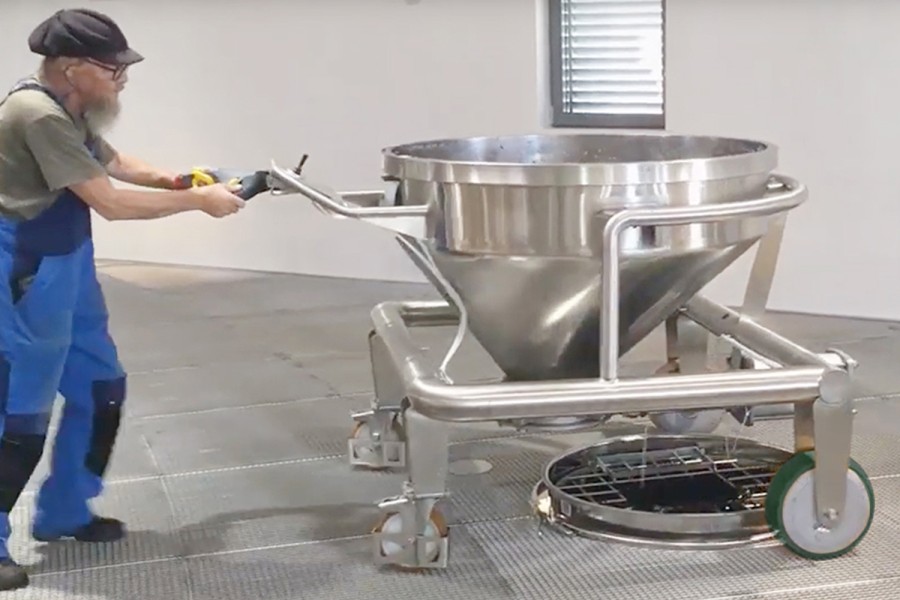

realisation serie 300 mobile tank

Stainless steel tank motorized with an ez-Wheel® electric wheel Series 300

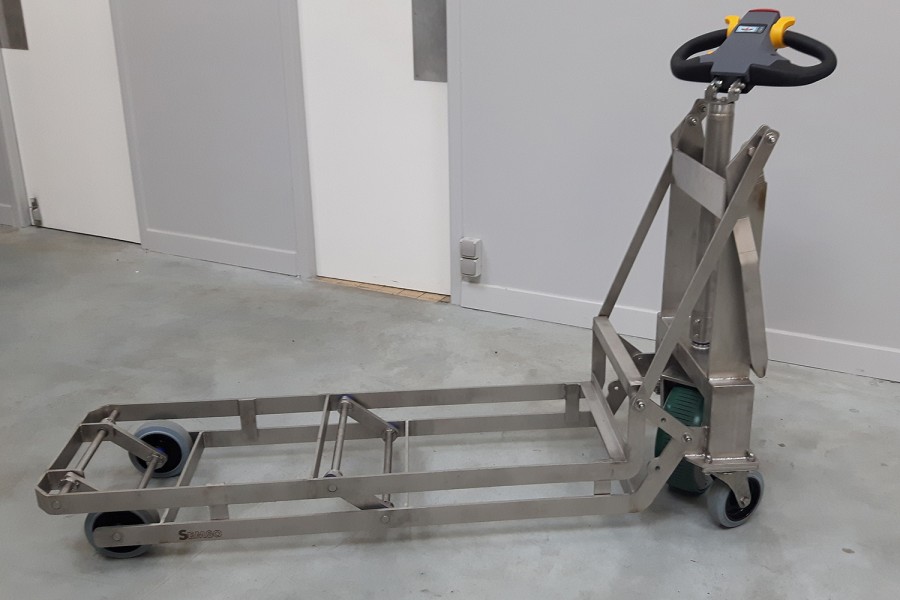

realisation serie 300 drum trolley

Drum trolley for food processing industry motorized by an ez-Wheel® electric wheel Series 300

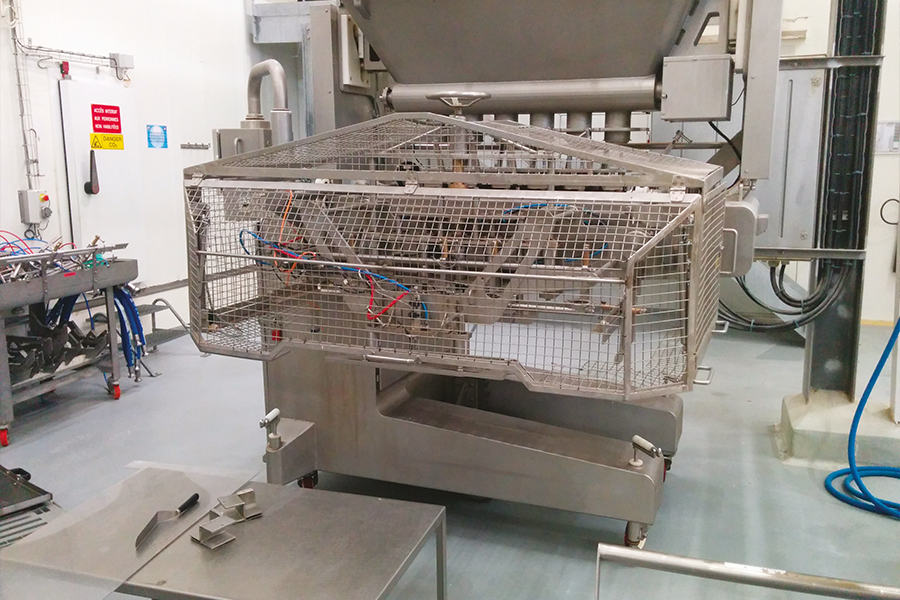

realisation ez wheel food processing ip66

Even the most complex production machinery can be motorized using ez-Wheel® electric wheels, thanks to their compact dimensions and IP66 housing.

They trust us
logo cooperl partenaire 2022
logo fleischwerk hessengut partenaire 2022
logo lactalis partenaire 2022
logo lustrucru partenaire 2022
logo arla partenaire 2020
logo bigard partenaire 2020
logo fleury michon partenaire 2020

ez-Wheel products adapted to the sector

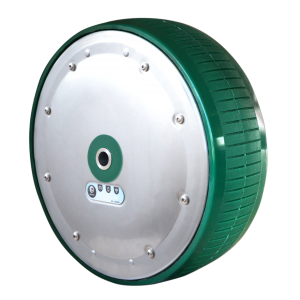

Ref. ezW300F/ST/W
serie 300F ST W end of life 2026
picto grip EN picto stainless steel EN picto wireless EN
Use
  • rolling equipment for harsh environment
  • pusher/pullers
  • food processing material
Main Specifications
Format / diameter 304 mm
Max vertical load Up to 300 kg
Speed 0 to 9 km/h
Type of tyre 60 sh.A polyurethane
Nominal power 12 daN at 6 km/h
Battery capacity 240 Wh
Peak torque 52 Nm
Pushing effort 35 daN / 1000 kg moved
Option(s) Stainless Steel recharge per contact
Joystick EW9Z-1JYTS
Ref. ezAAR
accessoires commande sécuritaire ezAAR
picto IP67 EN
Use
  • manual trucks
  • industrial motors
Joystick EW9Z-1JY3140
Ref. ezAARmini
accessoires smart control ezAARmini
picto IP67 EN
Use
  • medical carts
  • control panels
Control Ref. ezRTH/W/IP
tiller head IP end of life 2026
picto IP65 EN picto wireless EN picto horn EN
Use
  • pusher/pullers
  • food processing machines
  • outdoor applications
