Motorized assistance in the automotive industry

Visuel domaine automotive

Logistics flow optimization

Adding an electrical motorization on manual handling equipment allows improving logistics flow while preserving the health of operators. Motorize any rolling equipment in automotive industry such as milk run trolleys, towed trailers or kitting trolleys with ez-Wheel® electric wheels.

Our product offer is made for responding the automotive sector's requirements:

Performance

  • supply rate intensification
  • stock-outs and production stops decrease
  • flexible handling between different processing units


Operators

  • peak pushing effort reduction
  • working conditions improvement
  • easy, safe and intuitive use

Our solutions for the automotive industry

Solutions with a high level of performance, integration and adaptability.

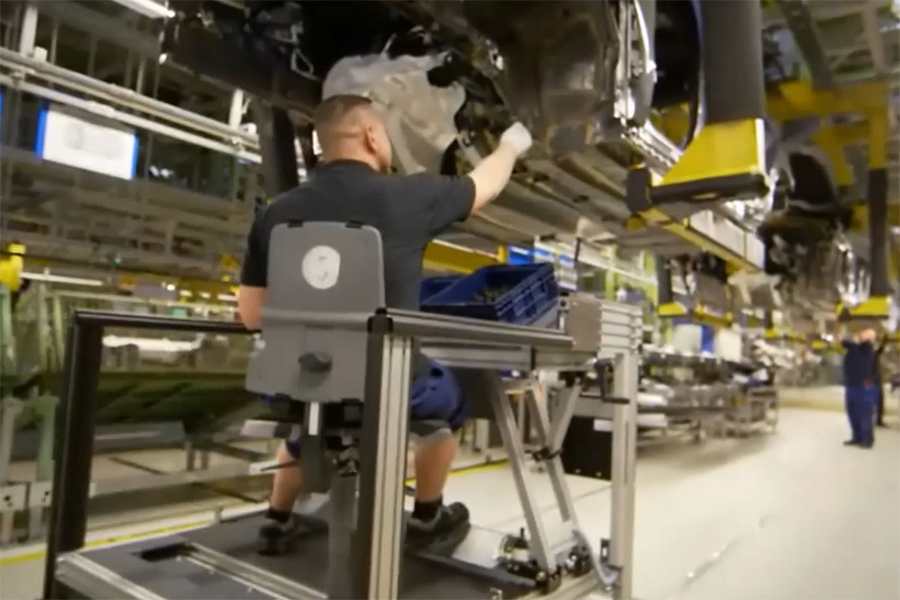

[+] Foot control platforms motorization to follow the overhead line movement

Operators movements may be also assisted by electric wheel ez-Wheel®. Motorized platform can be foot-controlled, allowing the operator to follow the overhead line movement.

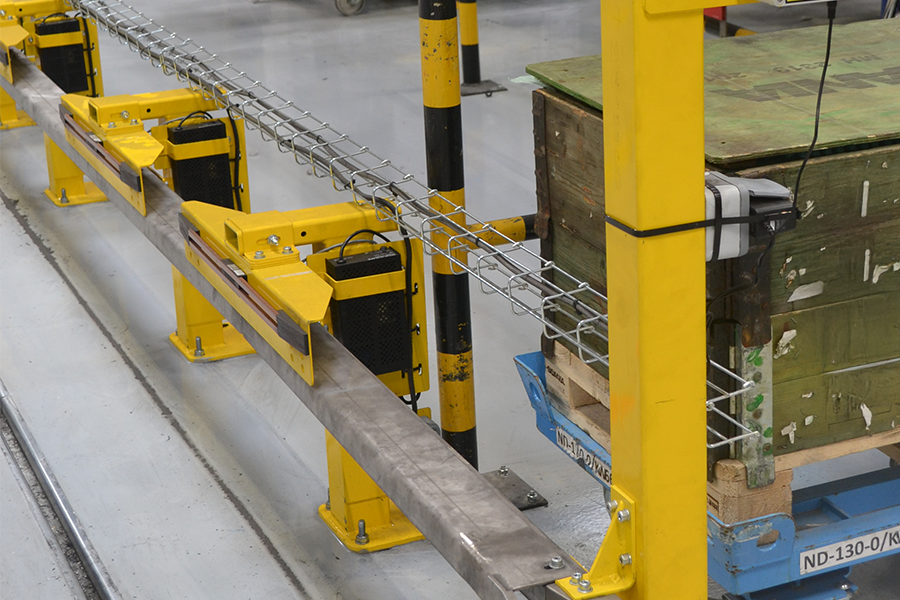

[+] Charging at workstation

The Series 300 and Series 150 ez-Wheel® electric wheels, can be recharged on each back-to-workstation. The built-in batteries are designed to go though many micro-charging cycles without any premature ageing risks.

[+] Sensitive control : for an accurate and comfortable use

The ezRPP/UC push-pull sensitive control resulting from collaboration with a well-known automotive group, is perfect for manoeuvring on the shop floor.

ez Wheel Serie 300 150 2
realisation serie 150 conveyor

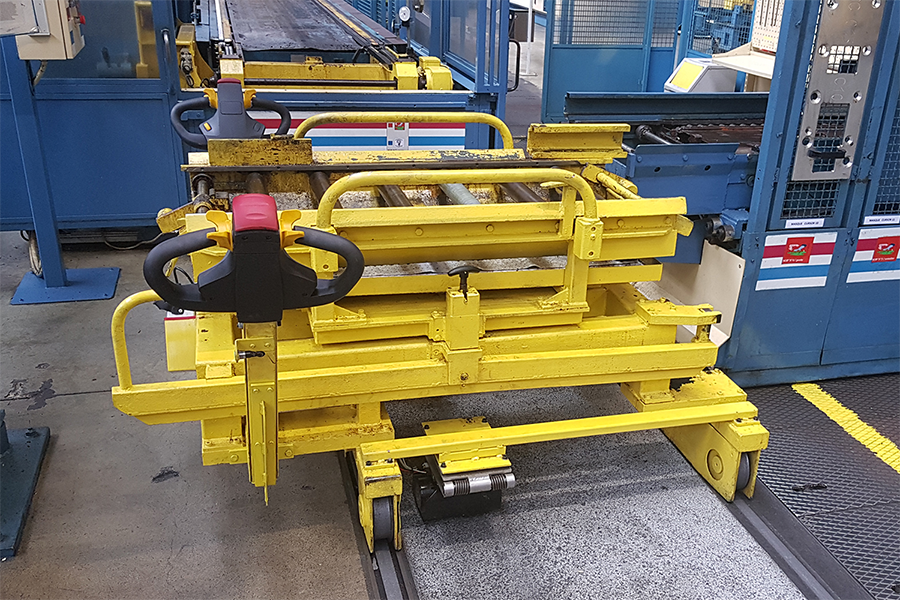

Conveyor transfer car equipped with an ez-Wheel® Series 150 electric wheel

realisation serie 300 towed trailers

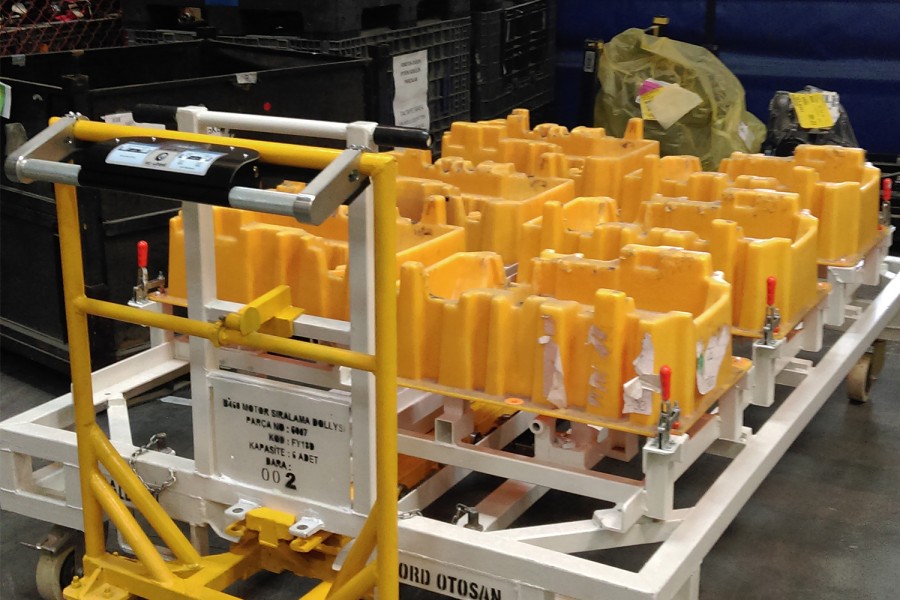

Towed trailers dedicated to heavy loads transportation motorized by an ez-Wheel® Assist Wheel Drive electric wheel

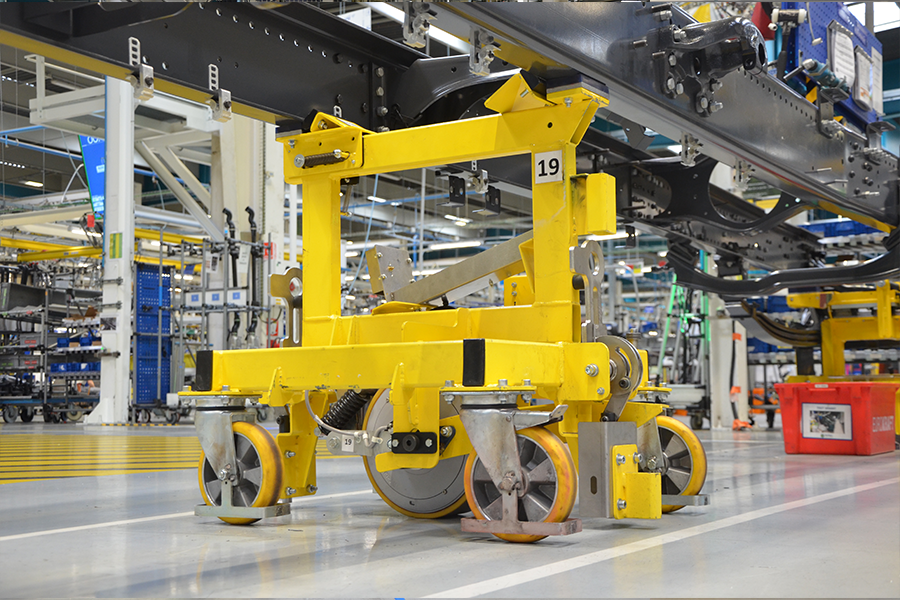

realisation serie 300 platform

Platform motorized with an Assist Wheel Drive electric wheel

They trust us
logo persico partenaire 2022
logo faurencia partenaire 2020
logo autoliv partenaire 2022
logo fiat power train partenaire 2022
logo heuliez partenaire 2022
logo iveco partenaire 2022
logo toyota MH partenaire 2022
logo valeo partenaire 2022
logo volvo partenaire 2022
logo zf partenaire 2022
logo daimler partenaire 2020
logo fca partenaire 2020
logo man partenaire 2020
logo groupe renault partenaire 2020
logo scania partenaire 2020

ez-Wheel products adapted to the sector

ezW300I/CCR
electric wheel series 300i ccr 0
picto regen EN picto serial EN
Use
  • industrial handling tools
  • towed rolling equipment
  • trolleys
  • (...)
Main Specifications
Format / diameter 300 mm
Max vertical load Up to 300 kg
Speed 0 to 9 km/h
Type of tyre 80 sh.A polyurethane
Nominal power 12 daN at 6 km/h
Battery capacity 240 Wh
Peak torque 52 Nm
Pushing effort 35 daN / 1000 kg moved
EW1A-150Hxx
Ref. ezW150I-x/x
EW1A 150Hxx ezW150I x x 11092024 (Photo HD DET)
picto shockproof EN
Use
  • industrial trolleys
  • rolling equipment for factories
  • mobile workstations and tools
  • (...)
Main Specifications
Format / diameter 150 mm
Max vertical load Up to 400 kg
Speed 0 à 5 km/h
Type of tyre 92 sh.A extrathane
Nominal power 15 daN at 4 km/h
Battery capacity 0/70/140 Wh (0/1/2 batteries)
Peak torque 27 Nm
Pushing effort 35 daN / 1 ton moved
Option(s) Parking brake /B, Additional battery
EW1A-150Sxx
Ref. ezW150I-x/xS
EW1A 150Sxx ezW150I x xS 11092024 (Photo HD DET)
picto grip EN picto shockproof EN
Use
  • industrial trolleys
  • rolling equipment for factories
  • mobile workstations and tools
  • (...)
Main Specifications
Format / diameter 150 mm
Max vertical load Up to 400 kg
Speed 0 to 5 km/h
Type of tyre 63 sh.A soft polyurethane
Nominal power 15 daN at 4 km/h
Battery capacity 0/70/140 Wh (0/1/2 batteries)
Peak torque 27 Nm
Pushing effort 35 daN / 1 ton moved
Option(s) Parking brake /B, Additional battery
Ref. ezW300I/CCR
serie 300I CCR end of life 2026
picto regen EN picto serial EN
Use
  • industrial handling tools
  • towed rolling equipment
  • trolleys
  • (...)
Main Specifications
Format / diameter 300 mm
Max vertical load Up to 300 kg
Speed 0 to 9 km/h
Type of tyre 80 sh.A polyurethane
Nominal power 12 daN at 6 km/h
Battery capacity 240 Wh
Peak torque 52 Nm
Pushing effort 35 daN / 1000 kg moved
Joystick EW9Z-1JYTS
Ref. ezAAR
accessoires commande sécuritaire ezAAR
picto IP67 EN
Use
  • manual trucks
  • industrial motors
Joystick EW9Z-1JY3140
Ref. ezAARmini
accessoires smart control ezAARmini
picto IP67 EN
Use
  • medical carts
  • control panels
Control Ref. ezRPP/UC
push pull sensitive control end of life 2026
Use
  • towed trailers
  • mobile platforms
  • (...)
